This page is under construction

Configuring OAuth/OpenID Connect

Configure OAuth/OpenID Connect service provider as described in here.



Configuring the Playground2 web application

To obtain and configure the single sign-on sample, follow the steps below.

  1. You can check out the repository of the OAuth 2.0 sample from GitHub. Follow the instructions here to checkout the folder. We refer <SAMPLE_HOME> as the modules/samples folder inside the folder where the product-is repository is checked out.

    https://github.com/wso2/product-is/tree/v5.1.0/modules/samples/oauth2/playground2

  2. In your command line, navigate to <SAMPLE_HOME>/oauth2/playground2 in the folder you checked out and build the sample using the following command. You must have Apache Maven installed to do this (see Installation Prerequisites for the appropriate version to use).

    mvn clean install

  3. After successfully building the sample, a .war file named playground2 can be found inside the <SAMPLE_HOME>/oauth2/playground2/target folder. Deploy this sample web app on a web container. To do this, use the Apache Tomcat server.

    Since this sample is written based on Servlet 3.0 it needs to be deployed on Tomcat 7.x.

    Use the following steps to deploy the web app in the web container:

    1. Stop the Apache Tomcat server if it is already running.
    2. Copy the playground2 file to the <TOMCAT_HOME>/webapps folder.
    3. Start the Apache Tomcat server.

OAuth 2.0 Grant Types with WSO2 OAuth2 Playground

 OAuth 2.0 Authorization code Grant Type with WSO2 OAuth2 Playground

Running the application:

  1. Visit the URL http://localhost:8080/playground2/oauth2.jsp to start the application.

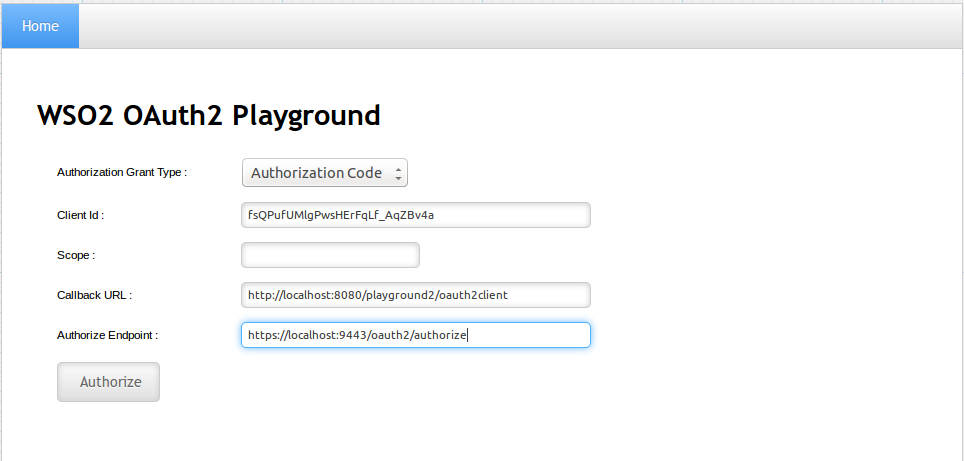

  2. Enter the following details and click Authorize.

    Authorization Grant Type: Authorization Code
    Client ID: (the client id received at the application registration)
    Callback URL: http://localhost:8080/playground2/oauth2client
    Authorize Endpoint: https://localhost:9443/oauth2/authorize



  3. Log in with the user credentials.

  4. Click Approve to consent to this action.

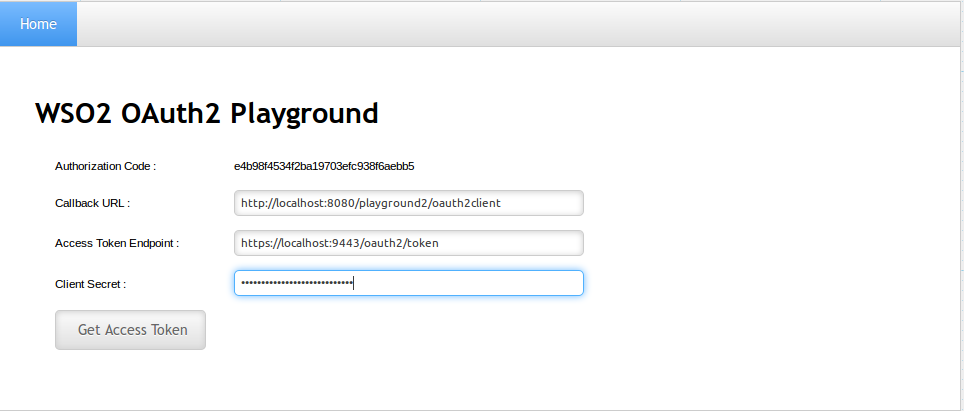

  5. Provide the following details and click on Get Access Token.

    Callback URL: http://localhost:8080/playground2/oauth2client
    Access Token Endpoint: https://localhost:9443/oauth2/token
    Client Secret: (client secret received at the application registration)

    If you have configured the service provider in a tenant, you have to add the tenant domain as a query parameter to the access token endpoint.

    If the tenant domain is wso2.com, access token endpoint will be as follows.

    Access Token Endpoint: https://localhost:9443/oauth2/token?tenantDomain=wso2.com

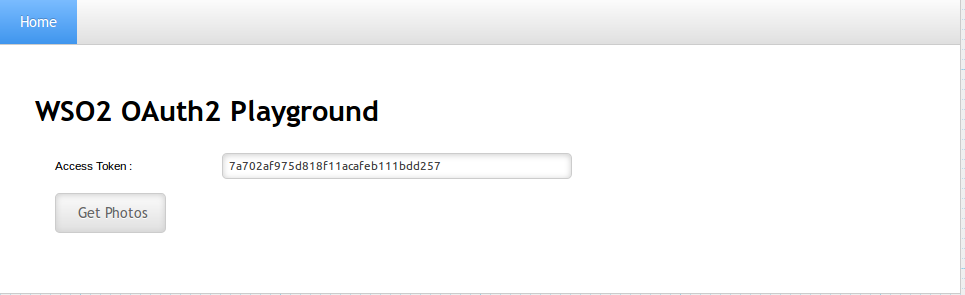

  6. At this point the application receives the Access Token.

  7. Click on Get Photos.

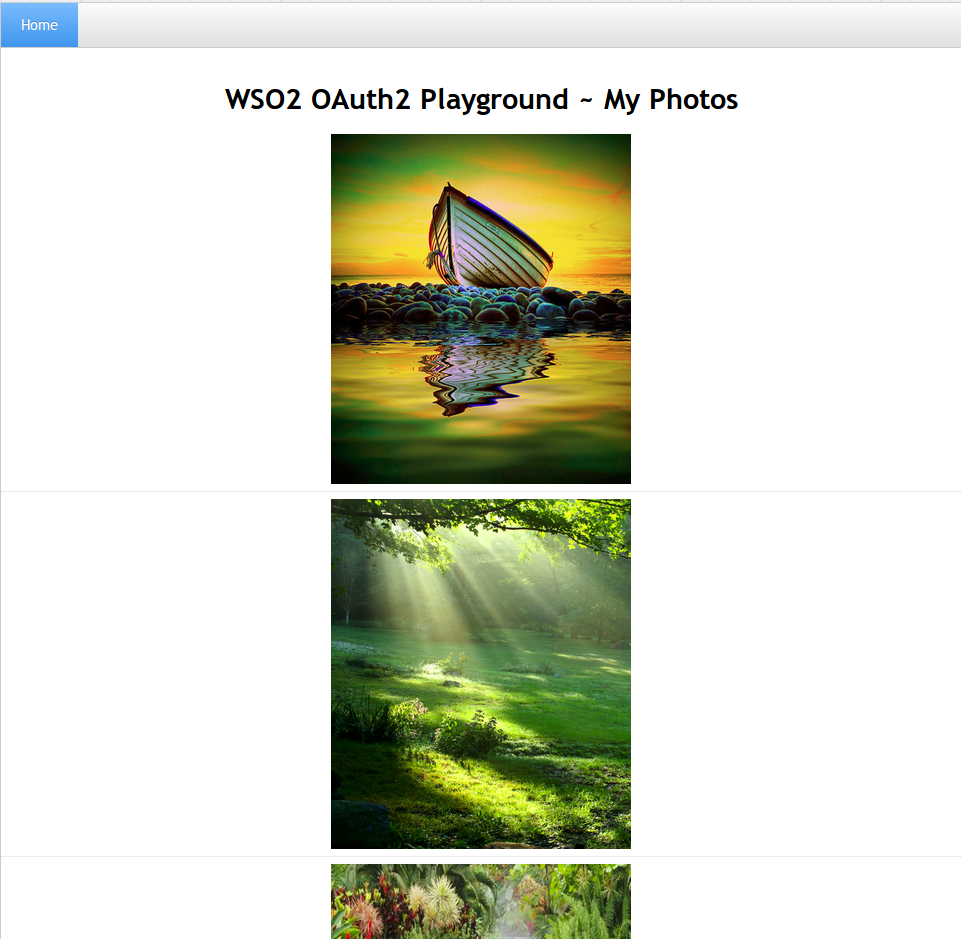

  8. Now you should be able to see the user photos.




 OAuth 2.0 Implicit Grant Type with WSO2 OAuth2 Playground

Running the application:

  1. Visit the URL http://localhost:8080/playground2/oauth2.jsp to start the application.

  2. Enter the following details and click Authorize.

    Authorization Grant Type: Implicit
    Client ID: (the client id received at the application registration)
    Callback URL: http://localhost:8080/playground/oauth2client
    Authorize Endpoint: https://localhost:9443/oauth2/authorize

    If you have configured the service provider in a tenant, you have to add the tenant domain as a query parameter to the authorize endpoint.

    If the tenant domain is wso2.com, authorize endpoint will be as follows.

    Authorize Endpoint: https://localhost:9443/oauth2/authorize?tenantDomain=wso2.com



  3. Log in with the user.
  4. Click Approve to consent to this action.
  5. At this point the application receives the Access Token.
  6. Click on Get Photos.

  7. Now you should be able to see the user photos.

 OAuth 2.0 Password Grant Type with WSO2 OAuth2 Playground

Running the application:

  1. Visit the URL http://localhost:8080/playground2/oauth2.jsp to start the application.

  2. Enter the following details and click Authorize.

    Authorization Grant Type: Resource Owner
    Client ID: (the client id received at the application registration)
    Client Secret: (client secret received at the application registration)
    Resource Owner User Name: (username)
    Resource Owner Password: (password of the user)
    Authorize Endpoint: https://localhost:9443/oauth2/token

    If you have configured the service provider in a tenant, you have to add the tenant domain as a query parameter to the access token endpoint.

    If the tenant domain is wso2.com, access token endpoint will be as follows.

    Access Token Endpoint: https://localhost:9443/oauth2/token?tenantDomain=wso2.com



  3. At this point the application receives the Access Token.
  4. Click on Get Photos.

  5. Now you should be able to see the user photos.

 OAuth 2.0 Client Credentials Grant Type with WSO2 OAuth2 Playground

Running the application:

  1. Visit the URL http://localhost:8080/playground2/oauth2.jsp to start the application.

  2. Enter the following details and click Authorize.

    Authorization Grant Type: Client Credentials
    Client ID: (the client id received at the application registration)
    Client Secret: (client secret received at the application registration)
    Authorize Endpoint: https://localhost:9443/oauth2/authorize

    If you have configured the service provider in a tenant, you have to add the tenant domain as a query parameter to the access token endpoint.

    If the tenant domain is wso2.com, access token endpoint will be as follows.

    Access Token Endpoint: https://localhost:9443/oauth2/token?tenantDomain=wso2.com



  3. At this point the application receives the Access Token.
  4. Click on Get Photos.

  5. Now you should be able to see the user photos.
